HDPE IPS PRESSURE PIPE

TDR FORZA FLOW® IPS High-density polyethylene pressure pipe engineered for potable water, agricultural systems, and municipal infrastructure — available in RD 7, RD 9, and RD 11.

TDR Forza Flow

HDPE IPS Pressure Pipe

TDR Forza Flow hdpe IPS pressure pipe delivers reliable performance for potable water distribution, residential and commercial service lines, irrigation systems, and agricultural water supply. Manufactured from HDPE 4710 resin — a high-performance bimodal material — it combines strength, flexibility, and chemical resistance in a lightweight form factor that installs faster and lasts longer than traditional pipe materials.

Unlike rigid systems, Forza Flow IPS absorbs vibration, resists UV exposure, and handles pressure surges without failure — making it the right call for seismic zones, exterior runs, and high-demand agricultural setups.

TDR Forza Flow HDPE IPS pressure pipe is engineered for a wide range of water conveyance applications. In residential settings, it serves as the primary service line connecting municipal mains to homes and commercial buildings.

For agricultural operations, Forza Flow IPS handles farm and ranch water supply, well and pump systems, and high-demand irrigation networks. Municipal engineers specify it for potable water distribution where NSF 61 certification and long-term pressure reliability are non-negotiable. Its UV resistance and flexibility also make it the preferred choice for exterior and above-ground runs in landscape irrigation projects.

DESIGN FEATURES

Potable Water Ready – NSF 61 certified HDPE 4710 resin
High Pressure Performance – up to 333 psi (RD 7 at 73°F)
UV & Chemical Resistant. – built for exterior and underground use
Seismic & Surge Tolerant – absorbs vibration and pressure surges
Flexible Joining – butt fusion, electrofusion, or mechanical compression
Multiple Coil Lengths – available in 100, 200, 300, and 500 ft

DOWNLOAD SPEC SHEET

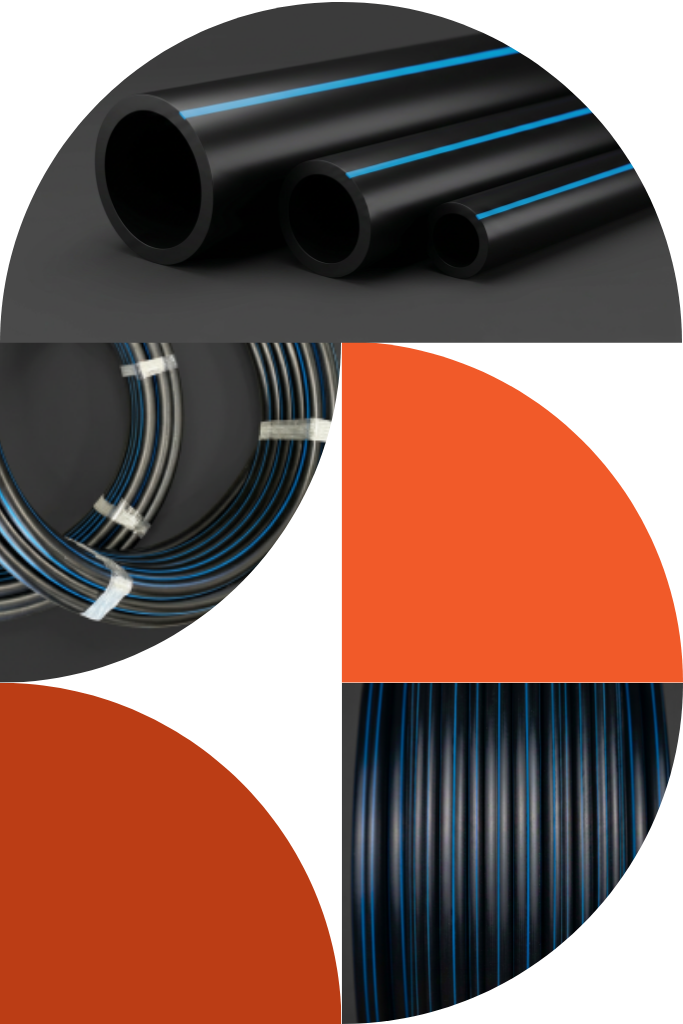

TDR Forza Flow HDPE IPS pressure pipe cross-section showing OD and wall thickness — RD 7 (333 psi), RD 9 (250 psi), RD 11 (200 psi)

Close-up of TDR Forza Flow HDPE IPS pressure pipe wall and blue stripe — PE 4710 bimodal resin, UV and chemical resistant

STANDARDS

Forza Flow IPS
ASTM D3035
AWWA C901
NSF 61

SIZES

ND	OD	MIN. Wall Thinckness
		RD 7	RD9	RD11
3/4″	1.05″ (26.70mm)	333 psi* (2.3 MPa)	250 psi* (1.7 MPa)	200 psi* (1.4 MPa)
1″	1.315″ (33.40mm)	0.15″ (3.81mm)	0.117″ (2.97mm)	0.095″ (2.41mm)
1 1/4	1.660″ (42.20mm)	0.188″ (4.78mm)	0.146″ (3.71mm)	0.12″ (3.05mm)
1 1/2″	1.9″ (48.3mm)	0.271″ (6.88mm)	0.211″ (5.36mm)	0.173″ (4.39mm)
2″	2.375″ (60.30mm)	0.339″ (8.61mm)	0.264″ (6.71mm)	0.216″ (5.49mm)
3″	3.5″ (88.9mm)	0.5″ (12.7mm)	0.389″ (9.88mm)	0.318″ (8.08mm)

IPS PRESSURE HDPE PIPE DIMENSIONS

At TDR, we understand that every project has unique pressure demands. That’s why the TDR Forza Flow IPS Pressure Pipe line offers a comprehensive range of sizes, dimension ratios, and coil lengths, ensuring the ideal fit for any specification.

Whether you’re serving a residential water line, a municipal service connection, or a high-capacity agricultural system, TDR Forza Flow IPS delivers a certified HDPE pressure solution engineered for precision, performance, and long-term reliability. Available in RD 7 (333 psi), RD 9 (250 psi), and RD 11 (200 psi) — compliant with ASTM D3035 and AWWA C901.

Our commitment to versatility and quality means you can rely on TDR Forza Flow to meet the toughest design requirements — with confidence, efficiency, and long-term reliability.
