TDR ULTRA Corrugated HDPE Pipe — East El Paso Commercial Corridor, El Paso, TX

Commercial Corridor Drainage El Paso — Pellicano Dr, TX

TDR Pipe supplied TDR ULTRA® corrugated HDPE pipe for commercial corridor drainage in El Paso, Texas at the East El Paso Commercial Corridor Development, a high-impact infrastructure project in the Loop 375 and Montana Avenue growth sector. TDR provided 10-inch through 48-inch dual-wall HDPE pipe totaling 4,120 linear feet for the site’s high-capacity storm network.

Project overview

The East El Paso Commercial Corridor Development is a high-impact infrastructure project located at 12940 Pellicano Dr, positioned within the rapidly expanding Loop 375 and Montana Avenue growth sector. Serving as a foundational commercial hub for the region, the project involved extensive site preparation and the installation of a high-capacity storm drainage network to support future large-scale warehouse and mixed-use facilities in one of El Paso’s most competitive real-estate markets. Getting the drainage right first meant future tenants would inherit a well-drained, accessible site.

The Challenge: Monsoon Runoff in a Tight Footprint
The underground storm-management system had to handle the runoff volumes characteristic of the El Paso monsoon season while fitting a tight project footprint. The sizing approach was dictated by the high percentage of impervious cover planned for the commercial site, so engineering analysis focused on maximizing flow capacity within restricted trench widths. The system also had to navigate existing utility crossings common in urban expansion zones—without sacrificing structural integrity or unnecessarily increasing excavation depth.

Commercial Corridor Drainage in El Paso — The TDR ULTRA® Solution

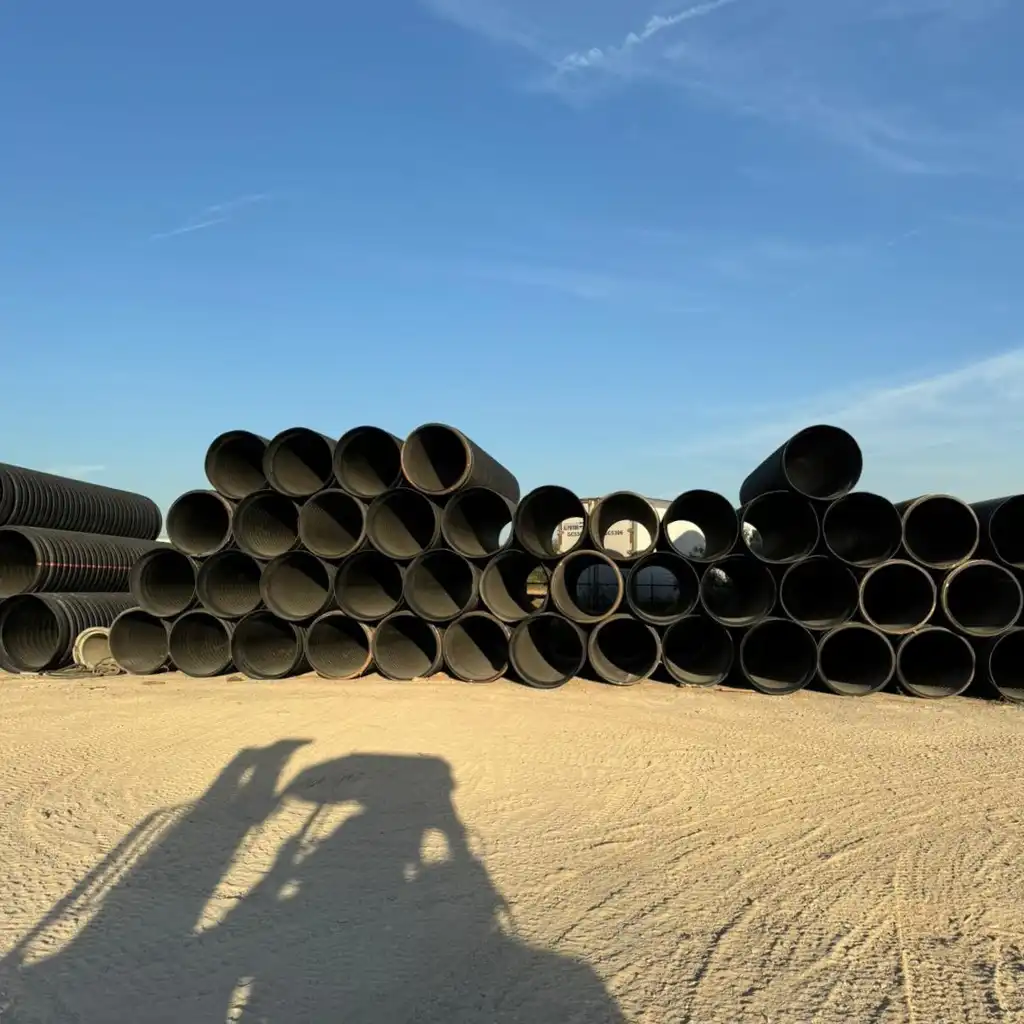

An advanced conveyance solution—TDR ULTRA® corrugated HDPE pipe—was configured with both collector lines and main trunk lines to keep the commercial lots well-drained and accessible. Its flexibility let the design navigate existing utility crossings without increasing excavation depth, and the multi-diameter network from 10 to 48 inches maximized flow capacity within restricted trench widths. Small collector pipes captured localized runoff while large-diameter trunks conveyed peak-storm flows—cost-effective, easy to install within the tight footprint, and sized to handle El Paso’s peak events.

Lay-Schedule Service and TxDOT Compliance
To facilitate a seamless installation, TDR provided a custom lay-schedule to the field crew—a sequential roadmap for pipe placement that minimized trench open-time and reduced alignment errors. In a high-growth zone with constant coordination among utility trades, this service was vital for holding the construction timeline and lowering construction-phase risk. Material selection and installation complied with applicable TxDOT drainage standards and roadway specifications.

Project Value The resulting drainage infrastructure gives the East El Paso Commercial Corridor a high-performance storm-management system. By using an advanced conveyance solution, the developer added significant value to the property—offering future tenants a reliable site that mitigates flood risk. The technical services provided moved the project from design to installation with increased schedule confidence and optimized resources, creating a sustainable environment for future commercial investment.

About TDR ULTRA® Corrugated HDPE Pipe
TDR ULTRA® is a dual-wall corrugated high-density polyethylene (HDPE) pipe engineered for gravity-flow stormwater drainage. It combines a smooth interior liner for hydraulic efficiency with a reinforced, annular corrugated exterior and a co-extruded integrated bell for watertight joints. Available in 4-inch through 60-inch diameters, TDR ULTRA® meets AASHTO M294 and ASTM F2306, with watertight joints tested per ASTM D3212—making it well suited to commercial, industrial, highway, and residential drainage projects across Texas.
