French Drain: Advanced Stormwater and Groundwater Drainage
French Drain: An Advanced Solution for Stormwater and Groundwater Drainage
A French drain is a highly effective civil-engineering solution designed to evacuate groundwater and stormwater efficiently. Unlike conventional drainage, it incorporates a specialized filtration system that prevents pipe clogging, ensuring reliable long-term performance and protecting structures from water damage.
Key facts
- What it is: a drainage system using perforated pipe and geotextile fabric
- Function: evacuate groundwater and stormwater, protect structures
- Products: TDR ULTRA® Perforated, TDR ULTRA® HDPE pipe, and geotextile
- Diameters: 4″ to 60″ · Meets ASTM & AASHTO standards
What is a French drain?
A French drain is a civil-engineering solution designed to evacuate groundwater and stormwater efficiently. It consists of a trench strategically filled with graded drainage aggregate and a perforated pipe wrapped in geotextile fabric. This combination makes it an integrated solution for protecting structures, buildings, roadways, and retaining walls against moisture damage, standing water, and potential flooding.
French drain vs. conventional drainage

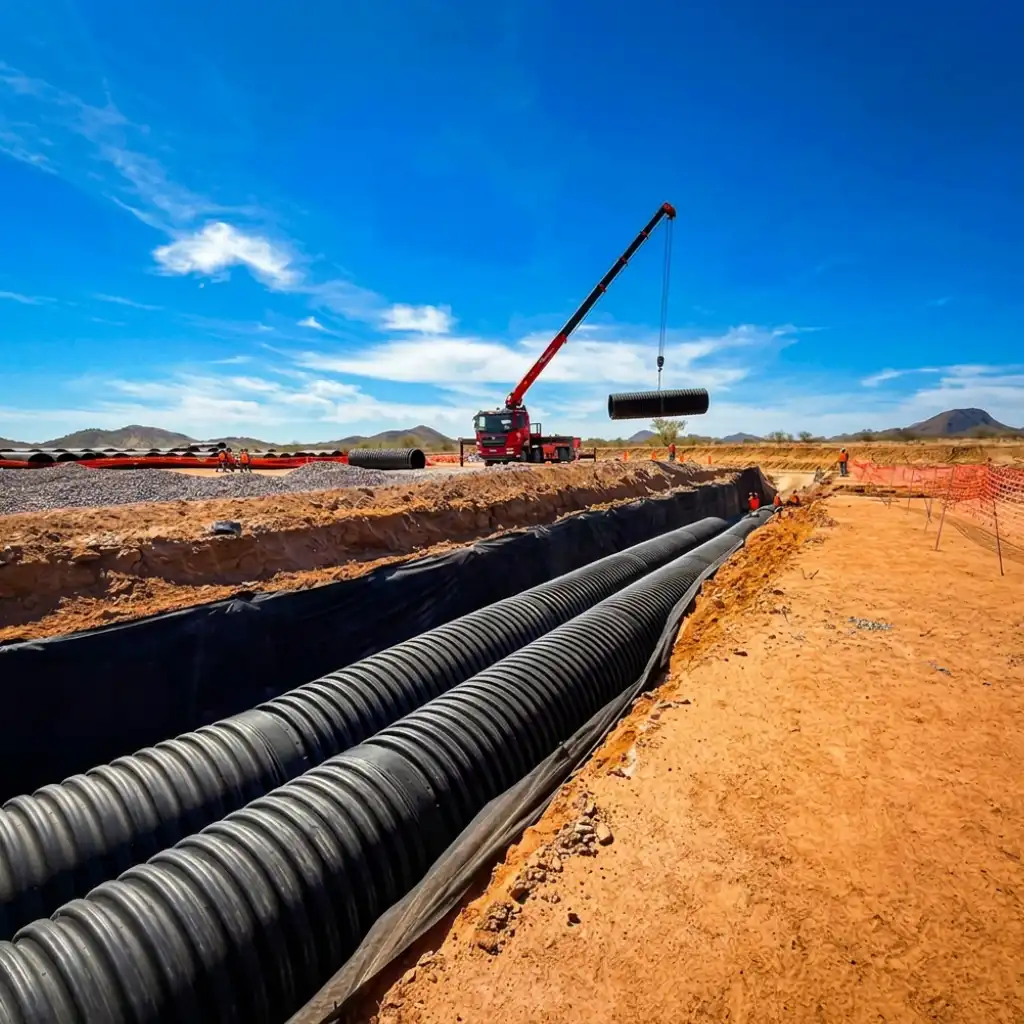

While both systems evacuate water, key technical differences make a French drain a superior solution in many applications:
| Conventional drainage | French drain |
|---|---|
| Perimeter trench along the structure | Trench with optimized depth |
| Waterproofing of the buried wall | Vapor-permeable waterproofing layer |
| Simple perforated pipe | Geotextile fabric as the first protective layer |
| Backfill with drainage material | TDR ULTRA® Perforated pipe for water capture |
| Cover with soil and pavement | Solid TDR ULTRA® pipe for added conveyance |
| — | Sealed with geotextile and stratified backfill |

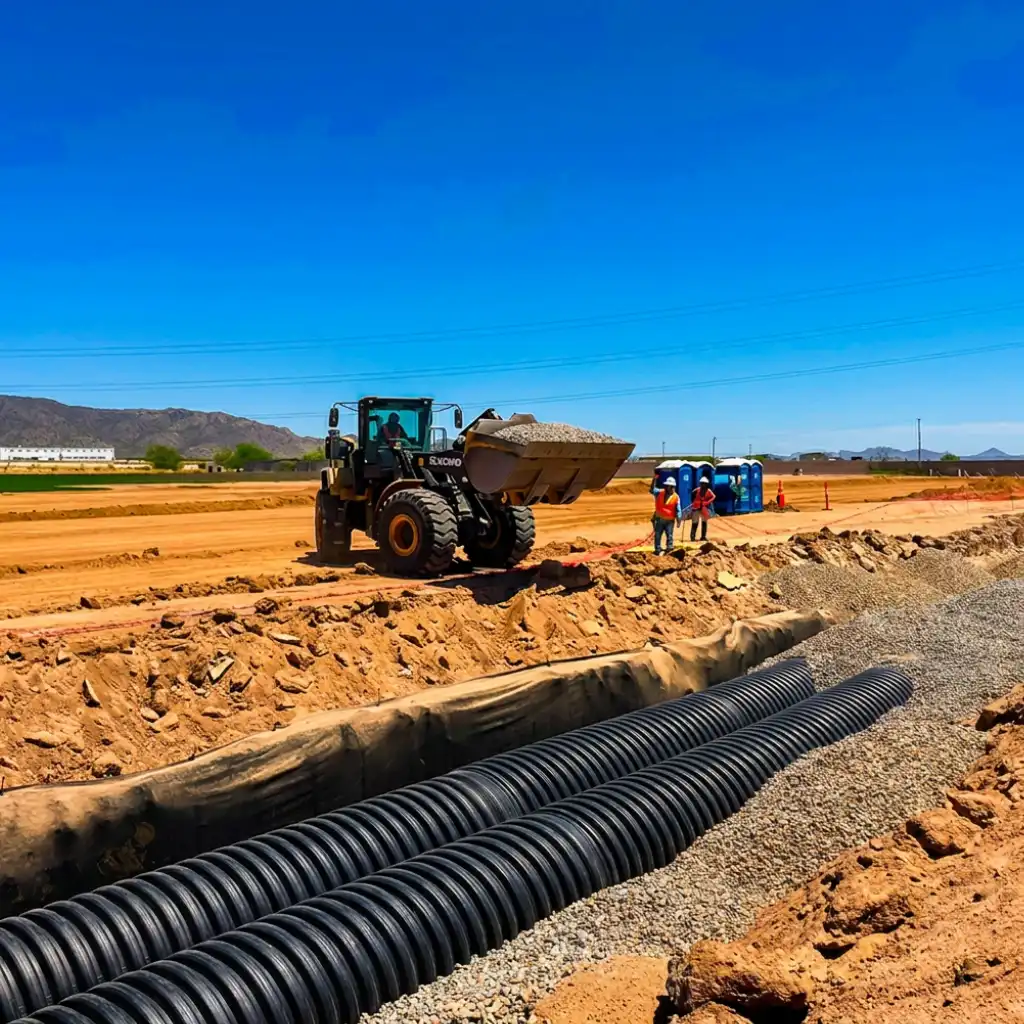

French drain installation, step by step
1. Excavate the trench
Dig a perimeter trench as deep as possible without compromising the foundation. A minimum slope of 1% is recommended to ensure gravity flow toward the discharge point.
2. Waterproof the wall
Apply a vapor-permeable waterproofing membrane to prevent damp soil from contacting the structure directly — a critical recommendation from our engineering team.
3. Place the geotextile fabric

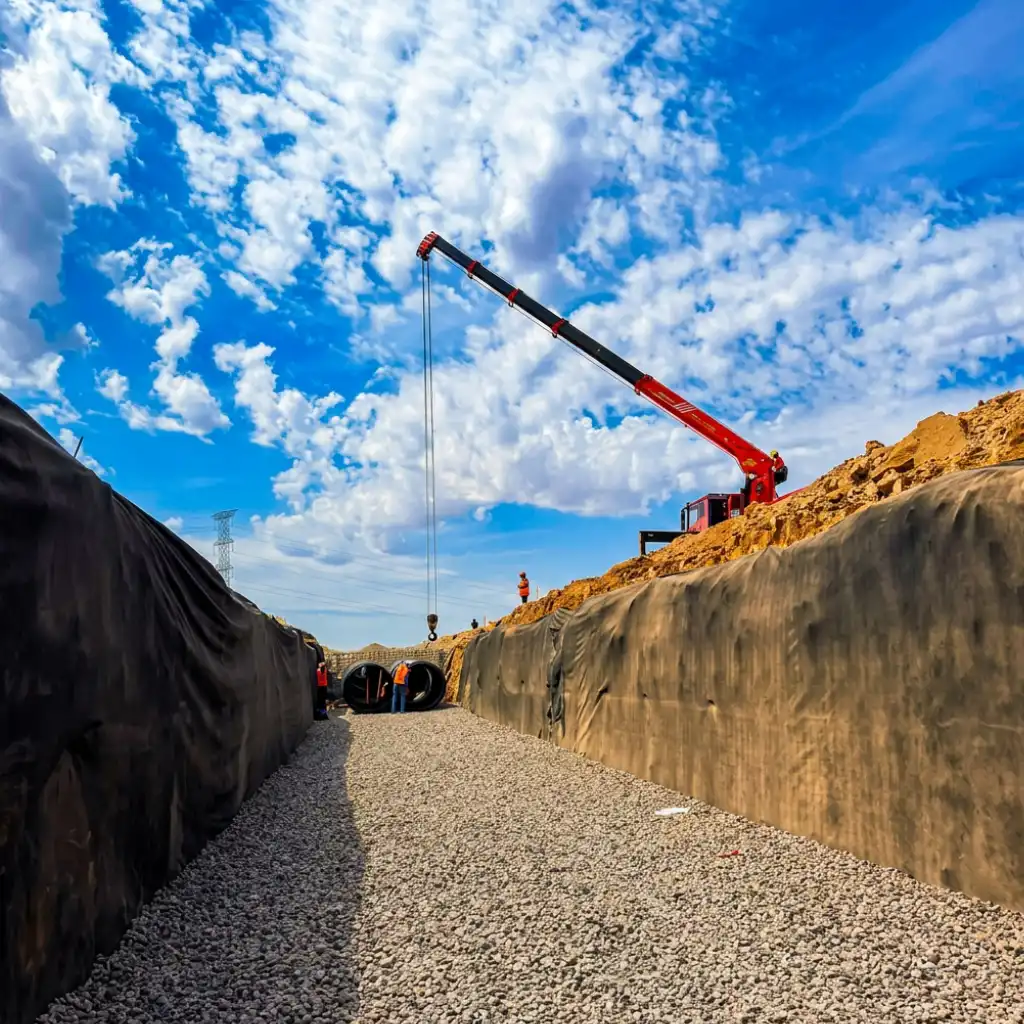

Lay the first layer of geotextile along the bottom and sides of the trench. This filter fabric acts as a barrier, letting water pass while retaining the soil particles and sediment that would otherwise clog the pipe.
4. Install the drainage pipe
Place the TDR ULTRA® Perforated pipe at the center of the trench, followed by solid (non-perforated) TDR ULTRA® HDPE pipe in parallel or a complementary configuration, based on the expected flows. Made from HDPE, they deliver durability and maximum hydraulic efficiency.
5. Wrap with geotextile
Close the trench by wrapping the entire system in geotextile, creating a protective “envelope” that keeps the drainage aggregate clean and ensures proper filtration.
6. Backfill and pave
Backfill with graded drainage aggregate, compact properly, then cover with soil and pavement.
TDR Pipe products for a French drain
TDR ULTRA® Perforated
TDR ULTRA® Perforated corrugated HDPE pipe is the ideal solution for water capture in a French drain:
- Material: corrugated high-density polyethylene (HDPE).
- Configuration: dual-wall with reinforced double-arch corrugations and integrated bell.
- Perforations: strategically engineered for maximum water capture.
- Resistance: high resistance to abrasion and chemicals.
- Diameters: 4″ to 60″ depending on the project.
- Standards: AASHTO M252/M294, ASTM F405 and ASTM F667.
TDR ULTRA® (solid / non-perforated)
Solid TDR ULTRA® corrugated HDPE pipe is the complementary option for conveying stormwater:
- 100% watertight joints for zero leakage.
- Smooth interior wall for superior flow capacity and hydraulic efficiency.
- Reinforced double-arch corrugations for maximum structural strength.
- Available in 4″ to 60″ diameters, in standard lengths.
- Standards: AASHTO M252/M294, ASTM F2648 and ASTM F2306; joints per ASTM D3212.
Geotextile Fabric
Geotextile is the component that sets a French drain apart from a conventional one:
- Filters sediment and fine particles.
- Distributes water flow evenly.
- Protects the system against clogging.
- Controlled permeability for maximum efficiency.
Benefits of a French drain
- Greater durability: geotextile protection prevents clogging and extends system life.
- Better drainage: improved capacity to evacuate stormwater and groundwater.
- Structural protection: prevents damage from moisture, capillary rise, and flooding.
- Reduced maintenance: geotextile filtration minimizes blockages.
- Versatility: suitable for buildings, roadways, agricultural projects, and more.
Case study: French drain for a large industrial facility
With decades of experience, TDR Pipe has supported large-scale drainage projects. One example is a stormwater-evacuation French drain designed for a large-format industrial facility, where reliable subsurface drainage was critical to protecting extensive paved areas.
Project specifications
| Product | Quantity |
|---|---|
| TDR ULTRA® Perforated 60″ | 83 lengths |
| TDR ULTRA® Perforated 48″ | 165 lengths |
| TDR ULTRA® 18″ (solid) | 115 lengths |
| TDR ULTRA® 24″ (solid) | 48 lengths |
| TDR ULTRA® 30″ (solid) | 20 lengths |
| TDR ULTRA® 36″ (solid) | 8 lengths |
| Geotextile (NW200) | 26,000 m² |
| Total | 439 pipe lengths + 26,000 m² geotextile |
Project outcome
The strategic combination of perforated pipe across multiple diameters, together with more than 26,000 m² of geotextile, delivered:
- Efficient stormwater evacuation across extensive surfaces.
- Comprehensive protection against flooding and standing water.
- A highly reliable French drain system for industrial operations.
- Long-term durability backed by internationally certified products.
Manufacturing and quality assurance
TDR ULTRA® Perforated and solid TDR ULTRA® HDPE pipe are manufactured to the most rigorous quality standards, meeting international specifications including ASTM and AASHTO — ensuring maximum reliability and durability to protect your structures for decades.
Conclusion
A French drain represents the natural evolution of traditional drainage systems. By combining TDR ULTRA® Perforated pipe, solid TDR ULTRA® HDPE pipe, and geotextile, you ensure efficient evacuation of stormwater and groundwater, protecting your investment against moisture damage. If your project requires a robust, reliable system, our engineering team is ready to help with tailored solutions.
Frequently Asked Questions About French Drains
What is a French drain?
A French drain is a civil-engineering drainage solution that evacuates groundwater and stormwater efficiently. It uses a perforated pipe wrapped in geotextile fabric inside a gravel-filled trench, providing specialized filtration that prevents clogging and protects structures from water damage.
What is the difference between a conventional drain and a French drain?
A conventional drain uses a simple perforated pipe and backfill, while a French drain adds a geotextile filtration layer that keeps sediment out of the pipe. This prevents clogging and gives the French drain greater durability, better drainage capacity, and lower maintenance over time.
Which TDR ULTRA® products are used for a French drain?
A French drain typically uses TDR ULTRA® Perforated corrugated HDPE pipe for water capture, solid (non-perforated) TDR ULTRA® HDPE pipe for stormwater conveyance, and a geotextile fabric for filtration. TDR Pipe supplies these components in diameters from 4 inches to 60 inches.
How deep should a French drain be installed?
The trench should be excavated as deep as possible without compromising the foundation, with a minimum slope of about 1% to ensure gravity flow toward the discharge point. The exact depth depends on the structure, soil conditions, and expected water volume.
Why is geotextile fabric important in a French drain?
Geotextile fabric is what sets a French drain apart from a conventional one. It filters sediment and fine particles, distributes water flow evenly, and protects the system against clogging—significantly extending the drainage system’s service life.
What standards do TDR ULTRA® French drain products meet?
TDR ULTRA® Perforated and solid HDPE pipe meet international standards including AASHTO M252/M294 and ASTM (F405, F667, F2648, F2306), with watertight joints tested per ASTM D3212—ensuring maximum reliability and durability.
Learn more about TDR ULTRA® corrugated HDPE pipe or explore our full product portfolio.
